GLOVE KNITTING MACHINE

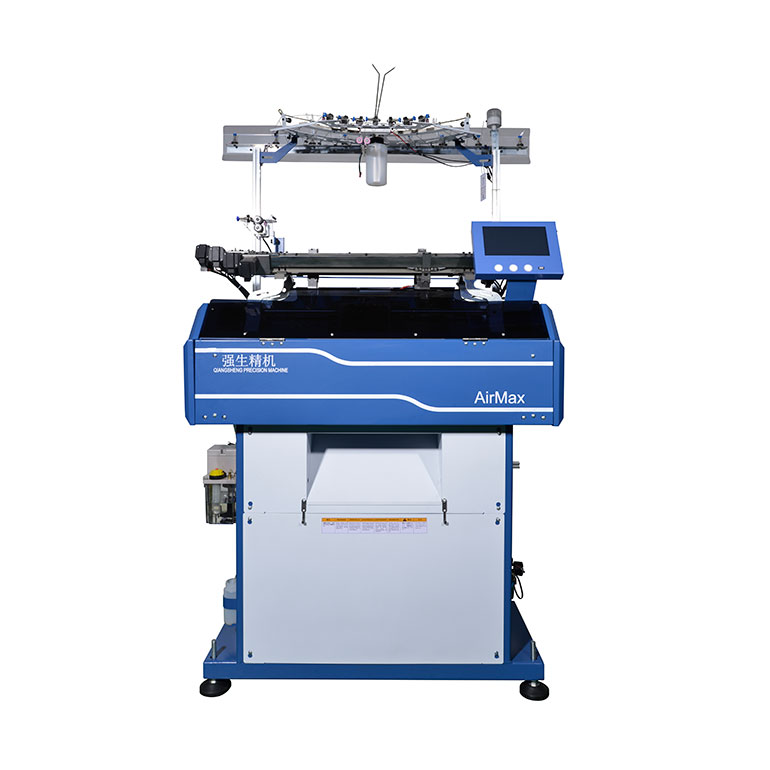

ArMax7G/10G/13G multi-functional & high-efficiency jacquard knitting machine

AirMax series computerized jacquard machine adopts Single carriage with single-system. These series are used digital technology to achieve the knitting functions of tuck, pick, and jacquard, apparent shape, hidden shape and other regular pattern knitting functions of glove machine. It can knit basic single or double jersey plain fabric, irregular multi-colors jacquard, cable structure patterns and so on.  It is suitable for knitting gloves, socks, scarves and clothing accessories from real thread, spun silk, synthetic fiber, wool, acrylic, blended, yarn and other raw materials. The most advanced yarn feeder we called “self-running system”. It can automatically arrange 8 yarn feeders, and can automatically adjust the knitting position of the yarn feeders, which can effectively avoid the phenomenon of overlapping yarn feeders; at the same time, the system can realize multiple yarns merge weaving in the same line. It easily completes the weaving work of complex patterns such as intarsia and garment knitting, which greatly improves the production efficiency.

This model adopts Dahao system, equipped with small carriage and fast rotation technology, which greatly shortens the weaving time, and improves the working efficiency by about 25% compared with the traditional old machine (specifically, the efficiency will vary according to the width of the fabric).


Specifications

Gauge

7G , 10G,13G

Knitting system

Single carriage

Machine speed

The maximum speed is 1.6m/s

Needle actuator

6section electronic needle actuator

Tight tuck

Tight tuck cam controlled by motor, achieve different tightness of the tight tuck.

Yarn forward device

Yarn feeder and yarn storage device(optional),accurate control of yarn tension, to ensure the quality of the overall quality of the fabric

Yarn feeder

8 yarn carriers are arranged on the left and right sides

Transmission system

Belt drive, AC servo motor control.

Data input

Input and output patterns via USB, PC and Internet

Protection system

Automatic stopping device if yarn broken, yarn knot, batching, striking, completion, overload, designated starting and stopping, program error

Safety device

The whole machine cover to reduce noise and dust, the protecting cover is equipped with stopping sensor, emergency stopping and power off device

Control system

1. DA HAO system
2. The screen adopts LCD touch screen display, graphical interface, can store a large number of pattern files, and can be called at any time according to production needs.
3. Through the screen checking page, you can view the working status and actual position of the cam; and adjust it at any time while the machine is running, which is most convenient for operation.
4. The control system (software part) and the pattern-making system are easily upgraded and are free of charge.
5. Multi-language version switching (Chinese, English, Russian, etc.)


Model

Size

Dimension
 (L*W*H)

Voltage

Power

Rotating Speed

Average Capacity
( pair )

Average Power Consumption Per Set
( kWh )

Electricity Consumption Per Pair
( kWh )

7G

M

1100*900*1350

220V

260W

300r

250

4.5

0.019

10G

M

1100*900*1350

220V

260W

300r

230

4.3

0.019

13G

M

1100*900*1350

220V

260W

300r

190

4.2

0.023
