手套生产设备

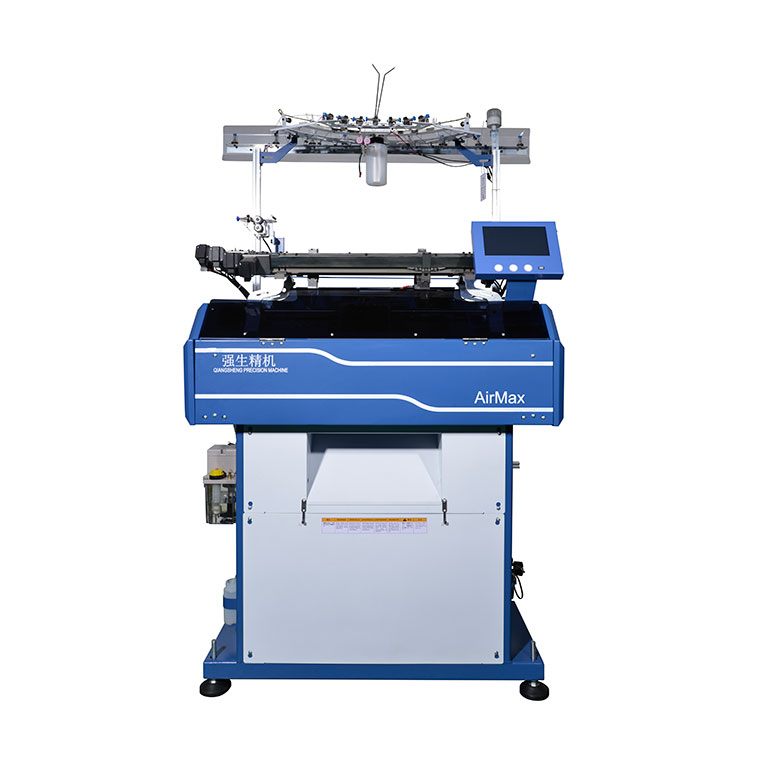

AirMax7G/10G/13G多功能高效提花编织机

  AirMax系列电脑提花机采用单机头单系统数字化技术实现手套机的编织吊目、挑针、提花、明收针、暗收针及其它规则的花型编织功能。可编织基本针织组织(单面、四平等)、多色无规则提花、等纬编组织。适用于真线、绢丝、合纤丝、羊毛、腈纶、混纺、纱线等原料编织手套,袜子围巾服装附件。最先进的纱嘴自跑系统可以自动编排8把纱嘴,并且可以自动调整纱嘴编织停放位置,有效的避免纱嘴重叠的现象;同时系统可以完成在同一行中多把纱嘴的合并编织功能,可以轻松的完成诸如嵌花和织可穿等复杂花型的编织工作,大大提高了生产效率。

   该机型采用大豪系统,配置小机头及快速回转技术,大幅度给缩短编织时间,比传统的老机器工作效率提升25%左右(具体根据织物的宽窄效率会有差异)。


主要技术参数

Gauge

7G , 10G,13G

Knitting system

Single carriage

Machine speed

The maximum speed is 1.6m/s

Needle actuator

6section electronic needle actuator

紧吊目
Tight tuck

电机马达控制紧吊三角,达到不同紧吊松紧度
Tight tuck cam controlled by motor, achieve different tightness of the tight tuck.

Yarn forward device

Yarn feeder and yarn storage device(optional),accurate control of yarn tension, to ensure the quality of the overall quality of the fabric

Yarn feeder

8 yarn carriers are arranged on the left and right sides

Transmission system

Belt drive, AC servo motor control.

Data input

Input and output patterns via USB, PC and Internet

Protection system

Automatic stopping device if yarn broken, yarn knot, batching, striking, completion, overload, designated starting and stopping, program error

Safety device

The whole machine cover to reduce noise and dust, the protecting cover is equipped with stopping sensor, emergency stopping and power off device

Control system

1. DA HAO system
2. The screen adopts LCD touch screen display, graphical interface, can store a large number of pattern files, and can be called at any time according to production needs.
3. Through the screen checking page, you can view the working status and actual position of the cam; and adjust it at any time while the machine is running, which is most convenient for operation.
4. The control system (software part) and the pattern-making system are easily upgraded and are free of charge.
5. Multi-language version switching (Chinese, English, Russian, etc.)


型号

尺码

体积

电源

功率

转速

平均

单台用电

单双用电

7G

M

1100*900*1350

220V

260W

300r

250

4.5

0.019

10G

M

1100*900*1350

220V

260W

300r

230

4.3

0.019

13G

M

1100*900*1350

220V

260W

300r

190

4.2

0.023
